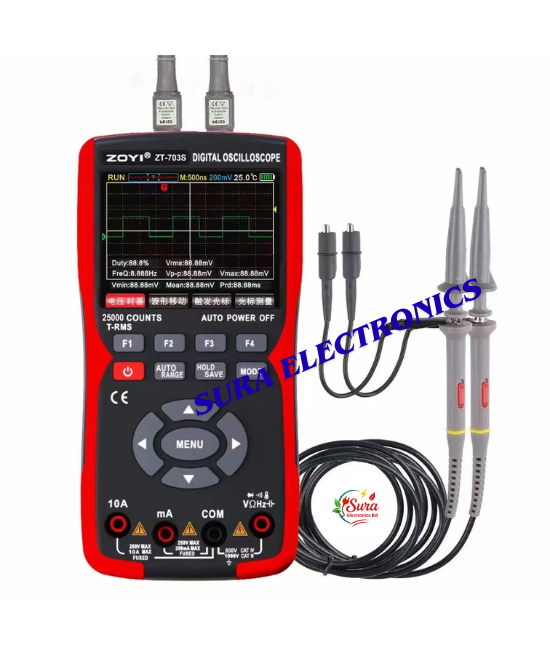

Zoyi ZT-703S 3IN1 50MHz Digital Oscilloscope Multimeter & Signal Generator
Roll over image to zoom in
৳ 10,500.00
| Model | Zoyi ZT-703S 3IN1 50MHz Digital Oscilloscope Multimeter & Signal Generator |
| Made | China |
| Condition | Original Brand New |
| Call | 01995144504, (10.30AM – 8.00PM) |
| suraelectronics71@gmail.com |
| Shipping in Dhaka & all over Bangladesh.. |
| Easy return if eligible, so easy. |
| Quick friendly and professional support. |
| Pay online or when receiving goods. |
Customers who bought this item also bought
-
৳ 8,200.00 -
৳ 27,500.00
৳ 29,000.00
Zoyi ZT-703S 3IN1 50MHz Digital Oscilloscope Bandwidth 280MSa/s Multimeter & Signal Generator
1. 50MHZ bandwidth plus 3400mAh lithium battery charging experience super endurance
2. 3-in-1 oscilloscope multimeter signal generator for your convenience
3. exported in the form of pictures, sampling rate 280M/S depth of storage 128Kpts PC transfer
4. Customized brightness adjustment and shutdown time settings
5. waveform data storage and formatting
2. 3-in-1 oscilloscope multimeter signal generator for your convenience
3. exported in the form of pictures, sampling rate 280M/S depth of storage 128Kpts PC transfer
4. Customized brightness adjustment and shutdown time settings
5. waveform data storage and formatting
Oscilloscope Specifications:
1. Bandwidth: 50MHZ dual-channel
2. Mpling mode: real-time sampling
3. Real-time sampling rate: 200M/280MSa/s
4. Input coupling: DC, AC
5. Input impedance: 1MO, @16pf
6. Afterglow Mode: Minimum, 500ms, 1S, 10S, Infinite
7. Sample rate range: 1.5Sa/s-280MSa/s
8. Waveform interpolation: (sinx)x
9. Sweep rate range: 10ns/div – 20s/div
10. Time base accuracy: 20ppm
11. Record length: up to 128Kbyte
12. Sensitivity: 20mV/div -10V/div
13. Displacement range: 4 frames (positive and negative)
14. Analog bandwidth: 50 MHz
15. Low frequency response: ＞10HZ
16. Rise time: ＜10ns
2. Mpling mode: real-time sampling
3. Real-time sampling rate: 200M/280MSa/s
4. Input coupling: DC, AC
5. Input impedance: 1MO, @16pf
6. Afterglow Mode: Minimum, 500ms, 1S, 10S, Infinite
7. Sample rate range: 1.5Sa/s-280MSa/s
8. Waveform interpolation: (sinx)x
9. Sweep rate range: 10ns/div – 20s/div
10. Time base accuracy: 20ppm
11. Record length: up to 128Kbyte
12. Sensitivity: 20mV/div -10V/div
13. Displacement range: 4 frames (positive and negative)
14. Analog bandwidth: 50 MHz
15. Low frequency response: ＞10HZ
16. Rise time: ＜10ns
Multimeter parameters:
1. DC voltage: 1000.0V/250.00v/25.000v2.5000V/250.00mV/25.000mV±(0.05%+3)
2. AC voltage: 750.0V/250.00V/25.000V2.5000V/250.00mV/25.000mV±(0.5%+3)
3. DC current: 10.000A/2.5000A 250.00mA/25.000mA±(0.5%+3)
4. AC current: 10.000A/2.5000A 250.00mA/25.000mA±(0.8%+3)
5. Resistance: 250.00KΩ±(0.5%+3) 250.00KΩ/25.000KΩ/2.5000KΩ ±(0.2%+3) 25.00MΩ/2.5000MΩ ±(1%+3) 250.0MΩ ±(5.0%+5)
6. Capacitance: 999.9μF/99.99μF/9.999μF±(2.0%+5) 999.9nF/99.99nF±(2.0%+5)
7. Frequency: 999.9KHz/99.99KHz/9.999KHz±(2.0%+5) 999.9Hz/99.99Hz±(2.0%+5)
8. Diode: √
9. On/Off: √
2. AC voltage: 750.0V/250.00V/25.000V2.5000V/250.00mV/25.000mV±(0.5%+3)
3. DC current: 10.000A/2.5000A 250.00mA/25.000mA±(0.5%+3)
4. AC current: 10.000A/2.5000A 250.00mA/25.000mA±(0.8%+3)
5. Resistance: 250.00KΩ±(0.5%+3) 250.00KΩ/25.000KΩ/2.5000KΩ ±(0.2%+3) 25.00MΩ/2.5000MΩ ±(1%+3) 250.0MΩ ±(5.0%+5)
6. Capacitance: 999.9μF/99.99μF/9.999μF±(2.0%+5) 999.9nF/99.99nF±(2.0%+5)
7. Frequency: 999.9KHz/99.99KHz/9.999KHz±(2.0%+5) 999.9Hz/99.99Hz±(2.0%+5)
8. Diode: √
9. On/Off: √
Product Parameters
1. Screen: 3.5-inch color screen
2. Resolution: 320 * 240
3. Charging: TYPE-C (5V/2A)
4. Battery: 3400mAh lithium battery
5. Support features: digital multimeter, oscilloscope, signal generator
6. Language: English
7. Product size: 177*89*40mm
8. Weight: 380g
2. Resolution: 320 * 240
3. Charging: TYPE-C (5V/2A)
4. Battery: 3400mAh lithium battery
5. Support features: digital multimeter, oscilloscope, signal generator
6. Language: English
7. Product size: 177*89*40mm
8. Weight: 380g
Package Includes
1* Oscilloscope
1* P2060 probe
2* Meter Pen
1* Screwdriver
1* Cloth bag
1* Manual
1* P2060 probe
2* Meter Pen
1* Screwdriver
1* Cloth bag
1* Manual
