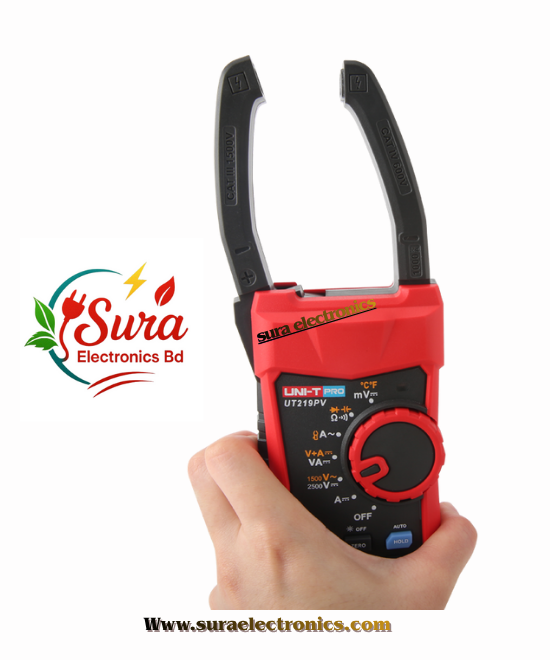

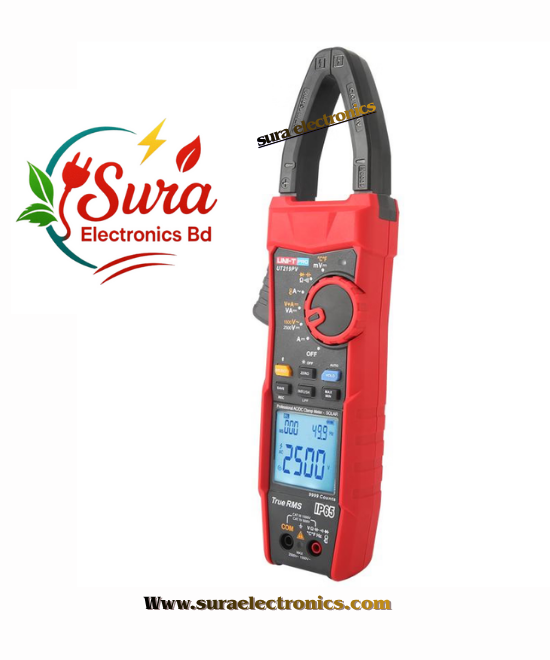

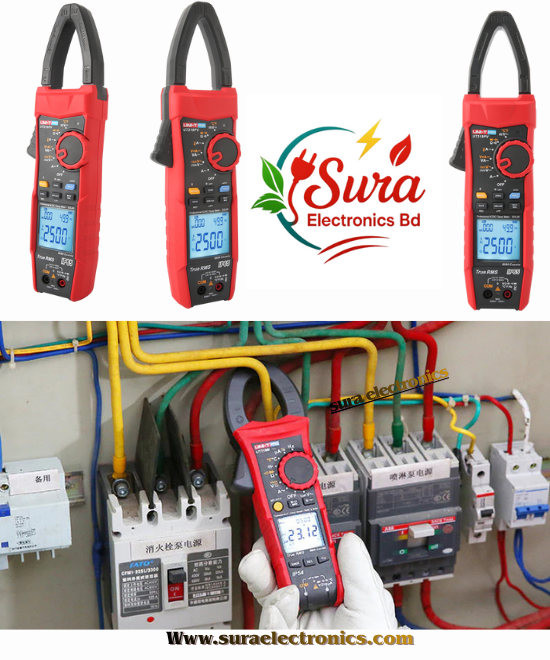

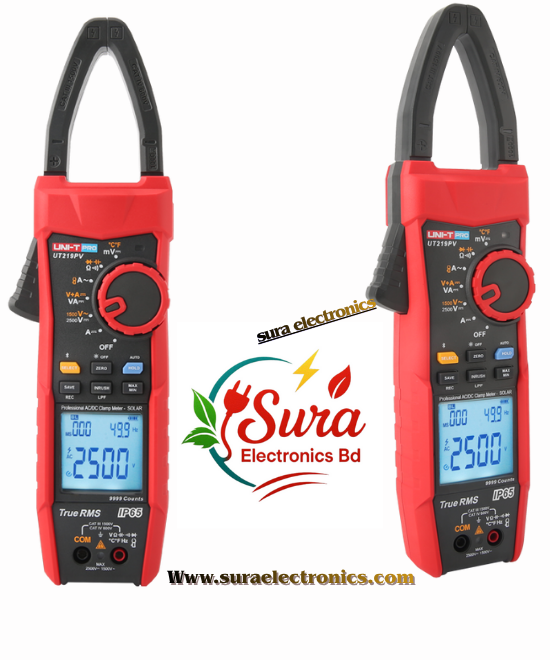

UT219PV Professional AC/DC Clamp Meter

UT219PV Professional AC/DC Clamp Meter

UNI-T UT219PV Professional AC/DC Clamp Meter is a high-performance digital clamp meter specially designed for solar photovoltaic (PV) system testing and industrial electrical maintenance. It provides precise and reliable measurements for both AC and DC voltage up to 1500V DC and 1000V AC, making it ideal for modern solar power applications and high-voltage environments.

Built with advanced True RMS technology, the UT219PV ensures accurate readings even in non-linear signal conditions. Its large LCD display, backlight, and ergonomic design allow for easy operation in any lighting condition. The meter’s IP65 dustproof and waterproof rating and CAT III 1000V / CAT IV 600V safety rating make it durable and safe for demanding field use.

Key features include a 2500V DC high-voltage range, 1000A AC/DC current measurement, Bluetooth connectivity for data logging via mobile app, temperature measurement, NCV (non-contact voltage detection), and data hold / max-min recording. The slim clamp jaw design makes it convenient for accessing tight spaces in crowded panels or wiring environments.

Whether you are a solar technician, industrial electrician, or maintenance engineer, the UNI-T UT219PV offers the reliability, safety, and precision required for professional diagnostics and system performance analysis.

Technical Specifications
Current (ACA) 999.9 A 40Hz~100Hz: ±(2.0%+5)
100Hz~1000Hz: ±(2.5%+5)
Current (DCA) 999.9 A ±(2.0%+5)
Voltage (ACV) 999.9V/1500V 40Hz~1000Hz: ±(1.0%+5)
Voltage (DCV) 999.9V/2500V ±(1.0%+5)
Voltage (DC mV) 999.9 mV ±(1.0%+5)
ACV(with LPF) 999.9V ±(2.0％＋9)
ACA(with LPF) 999.9A ±(2.5％＋9)
ACA(with LPF): flex clamp sensor 30.00A/300.0A/3000A ±(4.0%+9)(center area)
ACA;with flex clamp sensor 30.00A/300.0A/3000A ±(3.0%+5) (center area)
Power (DC) 999.9 kVA/2500 kVA ±(2.0%+20)
Frequency (A&V) 5.0 Hz to 999.9Hz ±(0.5%+5)
Resistance (Ω) 999.9Ω/9.999KΩ/99.99kΩ ±(1.0％+5）
Cpacitance（F） 100.0μF/1000 μF ±(1.0％+5）
Temperature -40℃~400℃/-40℉~752℉ ±(1.0%+30); ±(1.0%+60)
Features:
True RMS √
Display count 9999
Display LCD: Dual display (V+A)
Jaw (Max conductor dia.) 35mm
Diode √
