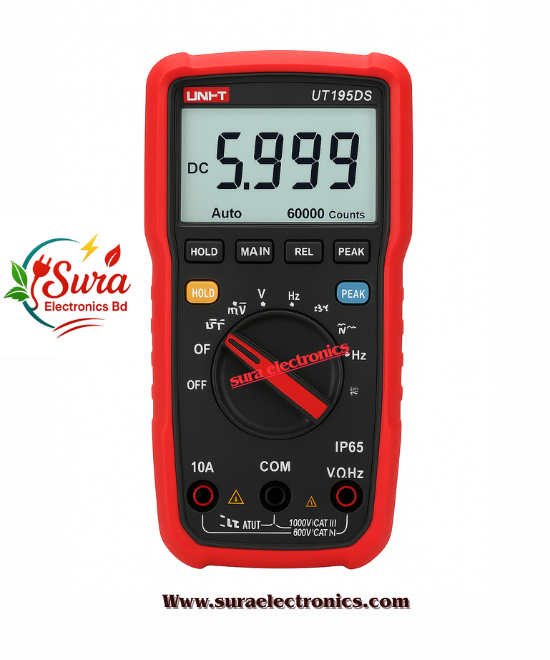

UNI-T UT195DS Digital Multimeter AC DC

UNI-T UT195DS Digital Multimeter AC DC

The UNI-T UT195DS is engineered for reliability in the most challenging industrial settings, with an IP65 rating that provides complete protection against dust ingress and resistance to water jets from any direction. This superior environmental protection ensures consistent performance in mines, oilfields, manufacturing facilities, and outdoor installations regardless of conditions.

Key Features

• Dual Display Interface: View multiple measurements simultaneously for comprehensive system analysis
• IP65 Environmental Protection: Complete dust and water-resistant design for harsh industrial environments
• 2-Meter Drop Protection: Rugged construction withstands impacts and rough handling
• True RMS Measurement: Accurate readings on modern electronic loads and distorted waveforms
• Low-Pass Filter (LPF): 1kHz filtering for accurate measurements on variable frequency drives
• AC+DC Measurement: Evaluate combined signals for complete system assessment
• Wide Frequency Response: 45Hz~5kHz bandwidth for advanced harmonic analysis
• 3-Phase Motor Sequence Test: Prevent motor damage with proper rotation verification
• Peak Hold Function: Capture transient events with 250μs response time

CAT III 1000V / CAT IV 600V: Maximum safety rating for industrial applications

Additional Features

• Display Count: 6000
• Display Interface: Dual
• Measurement Sampling Rate: 5/s
• Analog Bar Sampling Rate: 20/s
• Analog Bar: 31 segments
• AC Voltage Frequency Response: 45~5kHz
• AC Current Frequency Response: 45~5kHz
• 3-Phase Motor Sequence Test: 600V
• Low Pass Filter: 1kHz
• Diode/Continuity Test: 3V
• Peak Hold: 250μs
• Category Ratings: CAT III 1000V, CAT IV 600V, IP65
• Power Supply: 9V battery
• Display Size: 66 x 51mm
• Product Dimensions: 195 x 95 x 58mm
• Product Weight: 437g

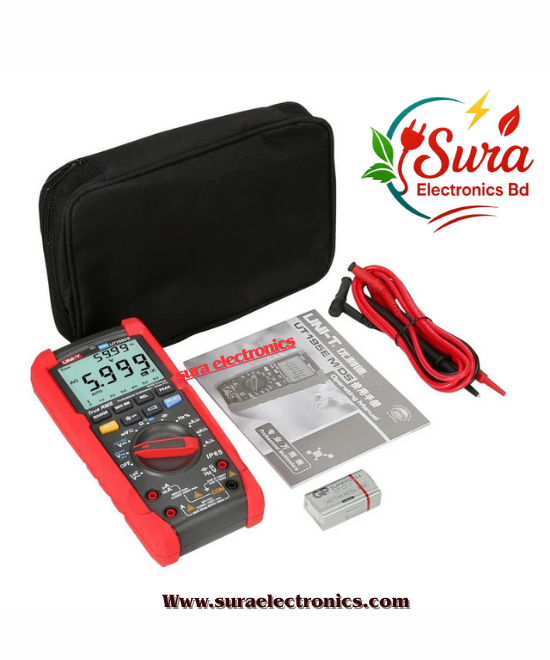

Package Contents

• UNI-T UT195DS Professional Digital Multimeter
• Test Probes
• 9V Battery
• Carrying Bag
• User Manual (English, German/French/Spanish optional)
